AD-PS02
Condensate Misting Pump for Outdoor Units
Recovers indoor condensate and sprays it as an ultra-fine mist onto the outdoor unit to improve heat exchange.
- 12 L/h
- <21 dB
- IP66
- Anti-siphon
AD-BU01 · Remote reservoir

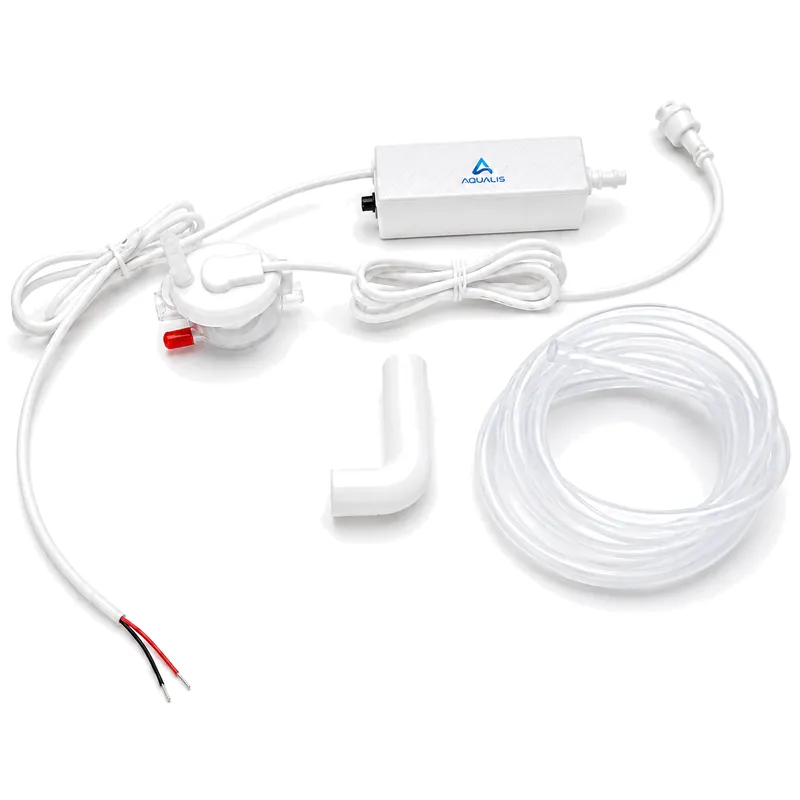

Two-Piece Condensate Pump
With the AD-BU01, the collection reservoir is separated from the pump block. The reservoir sits right at the unit's drain, while the pump is positioned wherever there is room — in low false ceilings, technical shafts or behind trunking.
35mL remote reservoir
1m suction height
15m maximum discharge head
IP67resin-sealed pump body
- 24-month warranty
- Complete kit
- Technical data sheet on request
Features
The reservoir goes where a monobloc can't.
Remote reservoir
The reservoir is independent from the pump block and fits where a monobloc pump cannot.
35 mL capacity
The largest reservoir in the Aqualis lifting-pump range.
Smart on/off
Automatic start and stop as soon as the reservoir fills.
Below 16 dB(A)
Inaudible in living spaces, bedrooms and offices at 1 m.
Resin-sealed, IP67
Pump body encapsulated in resin; rated for ambient temperatures up to 70 °C.
Complete kit
Pump, reservoir, elbow, tubing and wiring supplied — ready to install.
Technical data
AD-BU01 specifications
Specifications may evolve with product development. Contact us for the latest technical data sheet.
| Power supply | 100–240 VAC, 50/60 Hz |
|---|---|
| Power consumption | 3 W |
| Maximum flow rate | 15 L/h (at 0 m head) |
| Maximum discharge head | 15 m |
| Suction height | 1 m |
| Sound level | ≤ 16 dB(A) at 1 m |
| Safety contact | 3 A |
| Pump technology | Diaphragm pump |
| Continuous operation | 1,000 h |
| Reservoir capacity | 35 mL (remote) |
| Ingress protection | IP67 (resin-sealed pump body) |
| Maximum ambient temperature | 70 °C / 158 °F |
| Dimensions | 105.16 × 29.50 mm |
| Antibacterial protection | Silver-ion beads in reservoir |
Applications
Where it fits
Package contents
In the box
- Pump block with cable
- Remote reservoir with level sensor
- Elbow fitting
- Clear PVC tubing
- Wiring
- Adhesive pads, cable ties and fixing screw
The range
Related Aqualis solutions
AD-CY01
Mini All-in-One Condensate Pump
Pump body and reservoir combined in a single 132 mm unit for wall-mounted, ducted and cabinet systems.
- 15 L/h
- 15 m
- ≤16 dB(A)
- IP66
AD-GE01
Corner Condensate Pump for 80 × 60 Trunking
Integrates into the corner piece of standard European 80 × 60 mm trunking. 24 L/h and a 120 mL reservoir.
- 24 L/h
- 15 m
- 120 mL
- 17 dB
Next step
Specify the AD-BU01 on your next project.
Contact our team for technical documentation, or find an authorised partner to purchase Aqualis products.
