AD-CY01 · Monobloc
Mini All-in-One Condensate Pump
The AD-CY01 combines the pump body and the reservoir in one ultra-compact monobloc. With a single unit to position and connect, installation is quick and clean — inside the unit, in the trunking or in the tightest ceiling void.
132mm long — body and reservoir in one
≤16dB(A) at 1 m
15m maximum discharge head
IP66resin-sealed pump body
- 24-month warranty
- Complete kit
- Technical data sheet on request
Features
Everything in 132 mm. Nothing left to fit.
Integrated body and reservoir
One unit to mount and connect: faster installation, fewer parts, less room needed.
Smart on/off
The pump starts and stops automatically according to the water level in the reservoir.
High-level alarm
Built-in high-water detection with a 3 A safety contact to stop the air conditioner before any overflow.
Resin-sealed, IP66
The pump body is encapsulated in resin for dependable protection against water ingress.
Antibacterial reservoir
Silver-ion antibacterial beads limit mould and biofilm build-up in the reservoir.
Heat tolerant
Rated for ambient temperatures up to 70 °C (158 °F), ideal inside ceiling voids and enclosures.
Technical data
AD-CY01 specifications
Specifications may evolve with product development. Contact us for the latest technical data sheet.
| Power supply | 100–240 VAC, 50/60 Hz |
|---|---|
| Power consumption | 3 W |
| Maximum flow rate | 15 L/h (at 0 m head) |
| Maximum discharge head | 15 m |
| Sound level | ≤ 16 dB(A) at 1 m |
| Safety contact | 3 A |
| Pump technology | Diaphragm pump |
| Continuous operation | 1,000 h |
| Reservoir capacity | 20 mL |
| Ingress protection | IP66 (resin-sealed pump body) |
| Maximum ambient temperature | 70 °C / 158 °F |
| Dimensions | 132.73 × 26.30 mm |
| Antibacterial protection | Silver-ion beads in reservoir |
Applications
Where it fits
Package contents
In the box
- Monobloc pump with integrated reservoir and cable
- Elbow fitting
- Adhesive mounting pads (×4)
- Cable ties (×3)
The range
Related Aqualis solutions

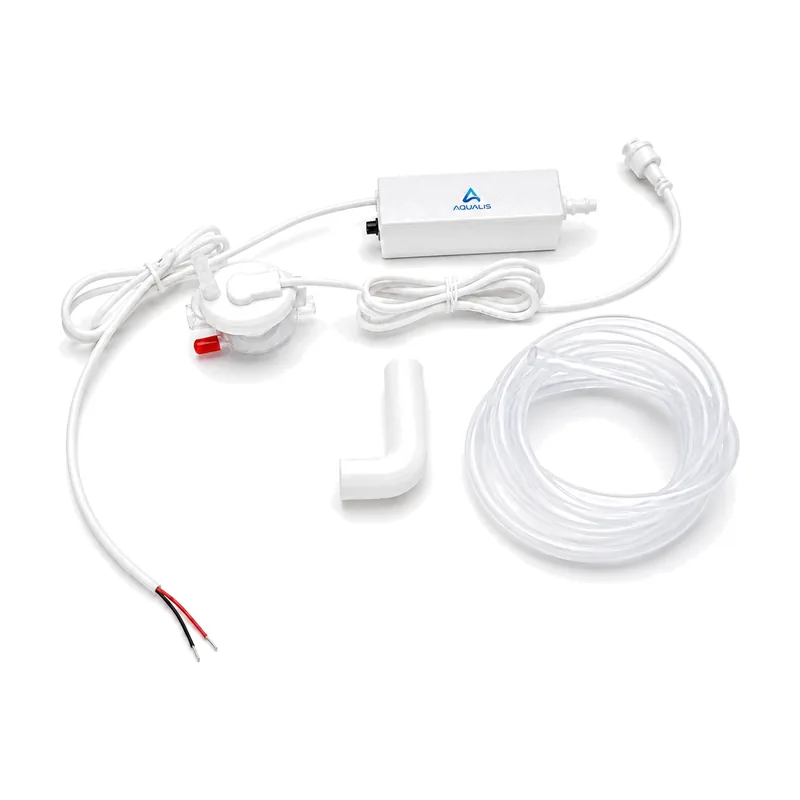

AD-BU01
