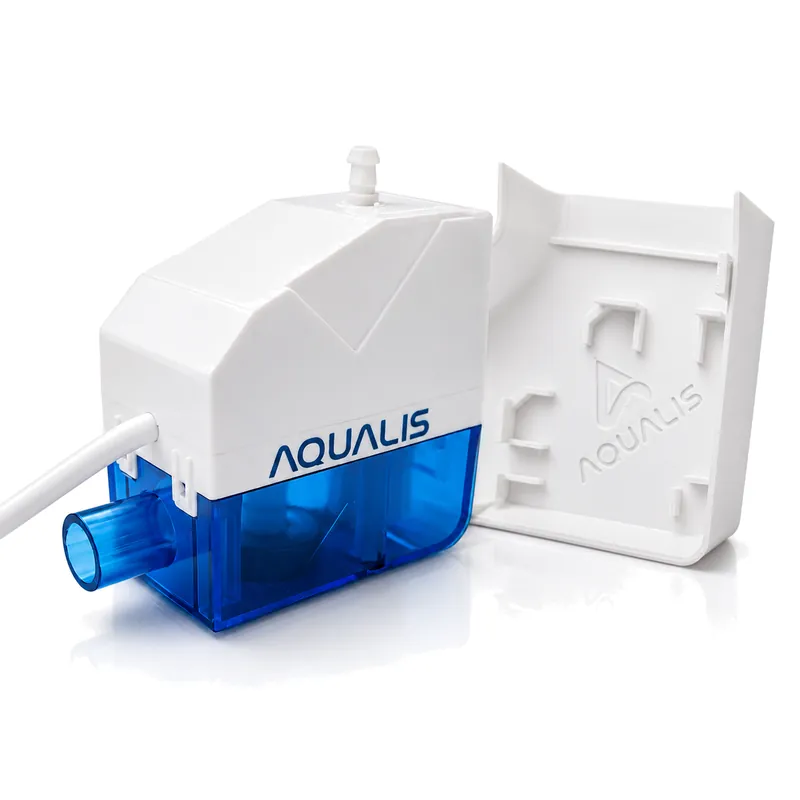

Aqualis AD-GE01 corner condensate pump with blue translucent reservoir next to its 80 × 60 corner housing

AD-GE01 · 80 × 60 trunking

Corner Condensate Pump for 80 × 60 Trunking

The AD-GE01 fits inside the wall-to-ceiling corner piece of standard European 80 × 60 mm trunking. Existing trunking stays in place — only the corner piece changes — for a discreet, fully integrated installation on wall-mounted units.

24L/h maximum flow rate
120mL reservoir
15m maximum discharge head
17dB sound level
Where to buy Ask our engineers
  • 24-month warranty
  • Complete kit
  • Technical data sheet on request
Features

Hidden in the corner. Compatible with any 80 × 60 trunking.

  • European 80 × 60 standard

    Compatible with 80 × 60 mm trunking from all major brands.

  • Keep the existing trunking

    Only the corner piece is replaced — no need to rework the line set cover.

  • Automatic start/stop

    Integrated level detection starts and stops the pump on demand.

  • 3 A safety contact

    Shuts down the air conditioner in the event of a malfunction to prevent overflow.

  • Large 120 mL reservoir

    Translucent reservoir with high-level alert for easy visual inspection.

  • Universal power supply

    100–240 VAC, 50/60 Hz for installations worldwide.

Technical data

AD-GE01 specifications

Specifications may evolve with product development. Contact us for the latest technical data sheet.

Power supply100–240 VAC, 50/60 Hz
Maximum flow rate24 L/h
Maximum discharge head15 m
Sound level17 dB
Safety contact3 A
Reservoir capacity120 mL
Level alertYes
Trunking format80 × 60 mm corner (housing available as an option)
Applications

Where it fits

  • Wall-mounted split units
  • Small indoor units
  • 80 × 60 mm trunking installations

All applications

Package contents

In the box

  • Pump with translucent reservoir and cable
  • Tubing and fittings
  • Wiring
  • Adhesive pads and cable ties
  • Optional: 80 × 60 mm corner housing
Next step

Specify the AD-GE01 on your next project.

Contact our team for technical documentation, or find an authorised partner to purchase Aqualis products.

Contact us Where to buy
